Concrete
FLOATING Docks
Concrete Floating Docks
Long lasting dock SYSTEMS
SF Marina offers a versatile range of concrete floating systems designed for durability, low maintenance and design customization. These docks are available in widths ranging from 8′ to 32′ (2.4-9.8m) wide, with a freeboard from 18 to 60 inches (457-1,524 mm). We can tailor lengths, widths, and angles to meet specific requirements, with utility ducts customizable for any need, large or small.
the SF marina floating dock SYSTEM
With a low center of gravity, SF Marina’s docks ensure stability in all weather conditions, while maintaining a constant freeboard height and an aesthetically pleasing, uncluttered, and safe mooring environment. High-quality concrete layers protect the closed-cell foam core and steel reinforcement, ensuring a long lifespan and minimal maintenance.
Our range of Concrete floating docks

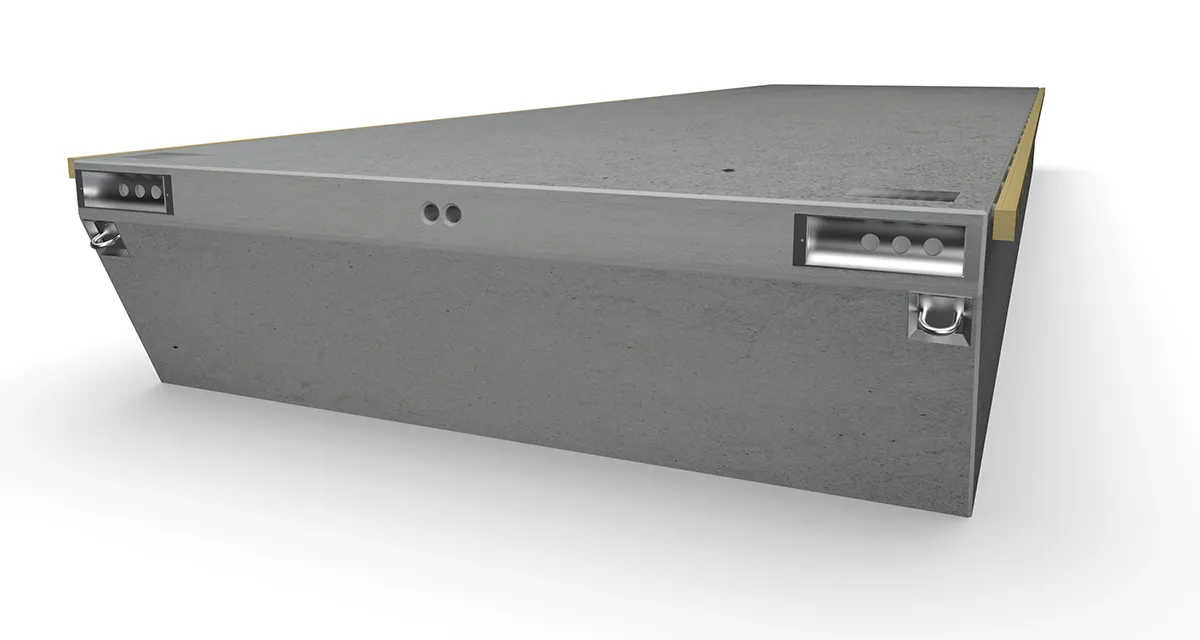

SF1800 SERIES
HEAVY PIERS AND FLOATING SOLUTIONS
SF1800 series is a floating dock pontoon with a structural height of 5’11 (180 cm) and an unloaded freeboard of about one meter. They are available in widths from 13.1 ft (4 m) up to 26.2 ft(8m) and in lengths up to 98.4 ft (30m).
SF1800 series is mainly used for very heavy piers, piers for commercial vessels but also as a foundation for the floating house.
Thinking about a project where the SF1800 series is applicable, do not hesitate and get in touch with us as we work together the best proposal for you.
Download

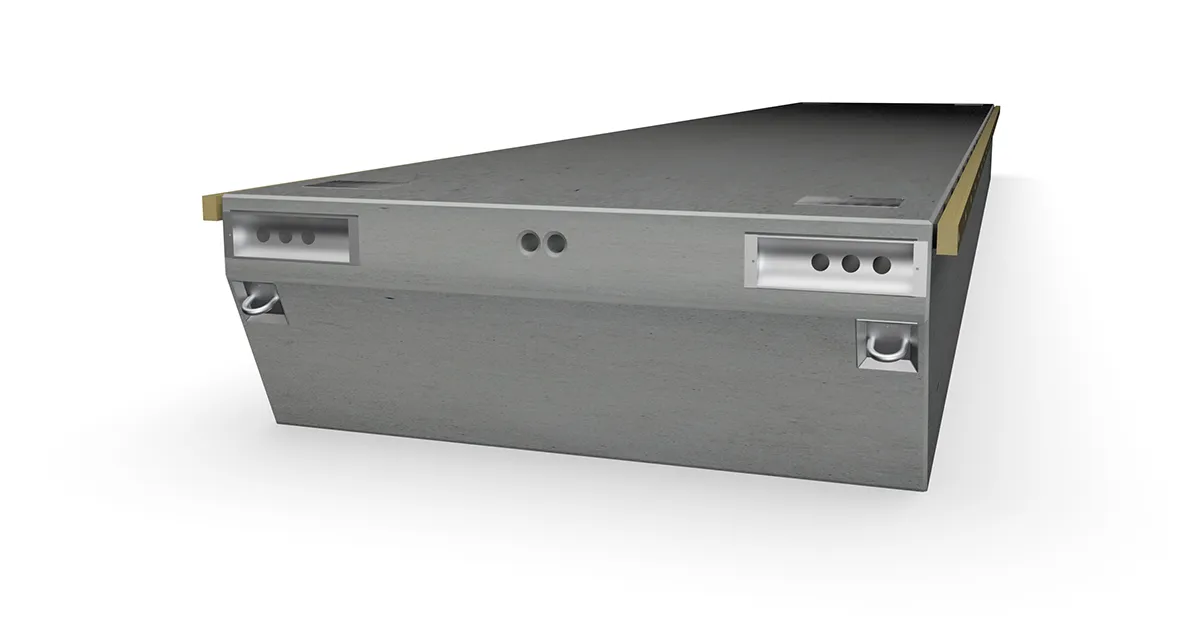

SF1500 SERIES
HEAVY PIERS AND FLOATING SOLUTIONS
SF1500 Series is a floating dock for the really demanding situations where you want to have a freeboard of around 29.5 in (75 cm). It is double reinforced in all the walls and it is available in widths from 13.1 ft (4 m) to 26.2 ft (8 m). SF1500 series is a very stable product series that are customized to the smallest detail.
Thinking about a project where the SF1500 series is applicable, do not hesitate and get in touch with us as we work together the best proposal for you.
Download

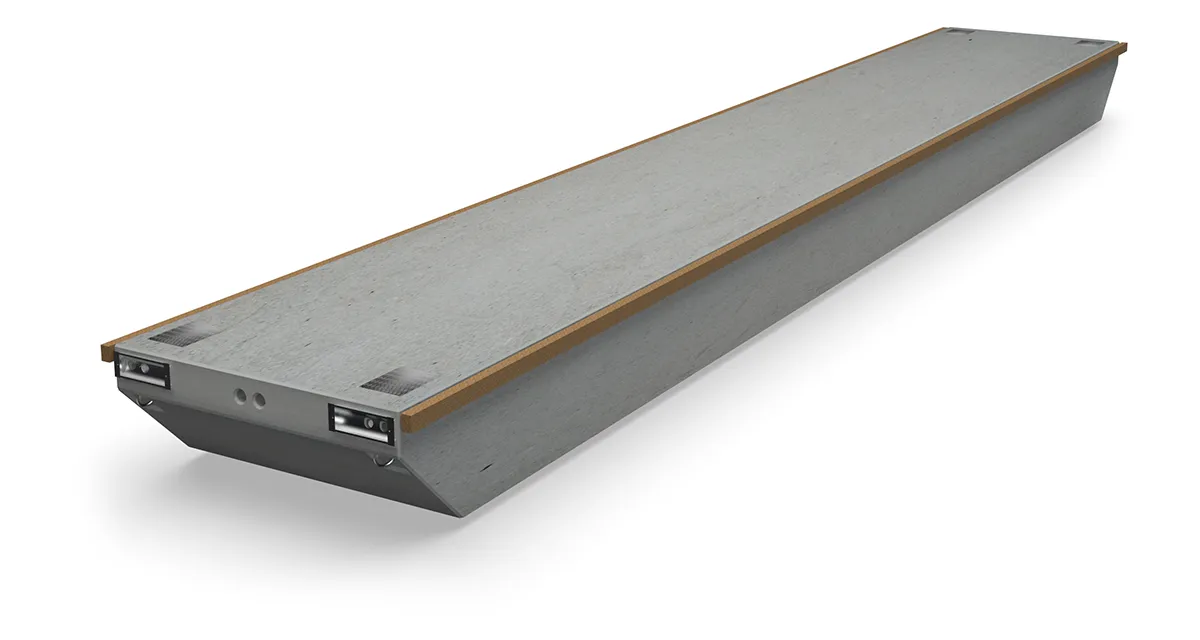

SF1200 SERIES
OPTIONS FOR COMMERCIAL PORTS
SF1200 series is a product primarily developed for commercial ports where tough wear all year long is to be expected. It has very strong armour and thick cover layer in its original version. SF1200 floating dock series is available in widths from 9.8-26.2 ft (3-8 m).
In recent years, we have noticed an increased interest in SF1200 Series features, primarily the 23.6 inches (60 cm) high freeboard and the higher weight, even within the recreation area where both marinas and individuals expressed their wish for a slightly higher freeboard than the usual 19.7 in (50 cm) we have on SF1000 series.
Due to the expanded interest in SF1200 series, we have developed the SF1200 Light, where we removed the double reinforcement in the walls for slightly less vulnerable applications. Thus, we have arrived at a very cost-effective pontoon with a freeboard of 23.6 in (60 cm).
Download
SF1000 SERIES
THE VERSATILE MARINA SOLUTION
The SF1000 series is the best seller in our range, which is explained by the wide range of applications. Within the series, we find floating dock pontoons with widths from 7.9 ft (2.4 m) concrete width up to 26.2 ft (8 m). Pontoons in SF1000 series floats with a freeboard of about 50cm depending on model and equipment. We produce it in lengths from 32.8 ft (10 m) up to 82 ft (25 m).
All pontoons in SF1000 Series are equipped with standard embedded stainless-steel fittings, embedded conduits and pipes for electricity and water, super strong coupling wells, finger jointed fenders and solid rubber spacers between the concrete and wood fenders.
Together with you, we look at your situation and then design the pontoon that best meets your needs.
